Wiring Diagram '99 Forester GT


Recommended Posts

Hi,  I'm having trouble finding the wiring diagrams for the '99 GT Forester.
I'm using the engine of the Forester in my 2000 Impreza.
As the Forester is an automatic and the Impreza is a manual I'm completing a manual swap with the wiring harness.
I've downloaded the Forester workshop manual but certain plugs don't match and some of the wires are different.
I'm guessing because it doesn't include the turbo model.
In a previous thread regarding the immobilizer, member 'Kayzarh' put up a page with the only picture that I've found that has the same ecu plug.
Does anyone know what manual that page was from and possibly where to get it, or does anyone have the following diagrams that I need please....

*  Engine Electrical System  - for the speed sensor
*  Ground Distribution -  for the manual identification pin

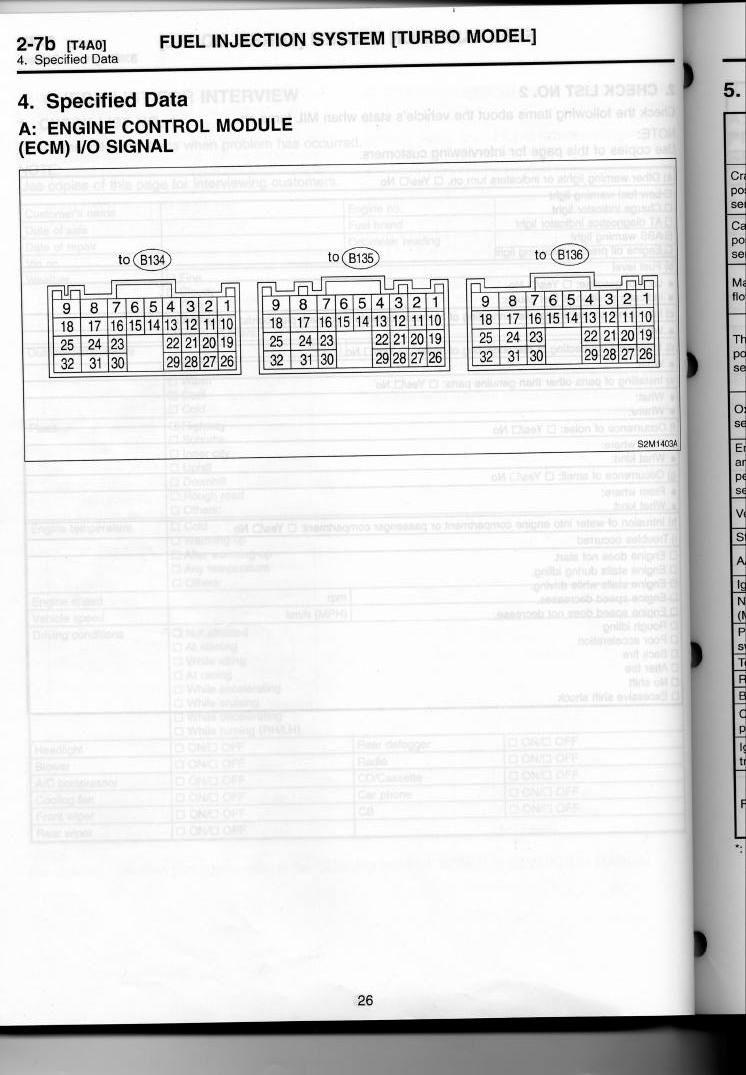

I've attached a picture of the correct ecu plugs that I'm looking for the diagrams for.
