Hello guys,



I have a problem with my engine from a Subaru Impreza 2.0 GL. i already put him inside my volkswagon beattle. and is stared wiring. but i found a immobilizer inside the wiring loom.

butt i accidentally cut off 3 of the 12 wires.



so my engine got the power suply what he needs. i got park. butt my injectors dont get a pulse because the immobilizer cuts the pulse off. does someone have a wiring diagram ore a good idea to fix this?



i took a picture of the immobilizer module.



i hope somebody can help me because i got really stuck here.



thanks for all the help!

post-5558-0-37209500-1451753183_thumb.jp

Link to comment
Share on other sites

  • 1 month later...
On 02/01/2016 at 4:46 PM, huus690 said:

Hello guys,



I have a problem with my engine from a Subaru Impreza 2.0 GL. i already put him inside my volkswagon beattle. and is stared wiring. but i found a immobilizer inside the wiring loom.

butt i accidentally cut off 3 of the 12 wires.



so my engine got the power suply what he needs. i got park. butt my injectors dont get a pulse because the immobilizer cuts the pulse off. does someone have a wiring diagram ore a good idea to fix this?



i took a picture of the immobilizer module.



i hope somebody can help me because i got really stuck here.



thanks for all the help!

post-5558-0-37209500-1451753183_thumb.jp

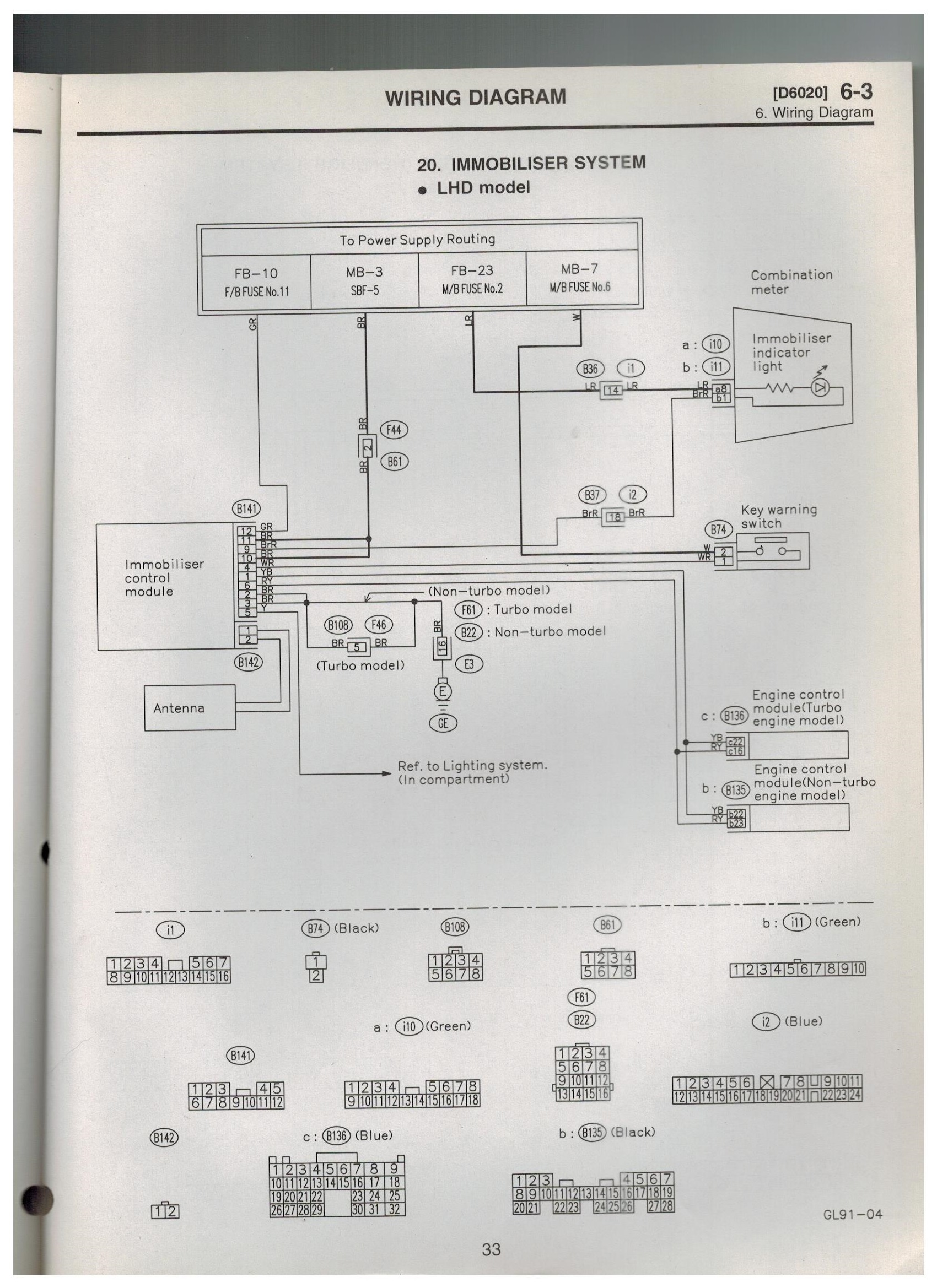

welcome to the forum, here is an immobilizer diagram for both turbo/nonturbo models and this is specifically for LHD:

123123123.thumb.jpg.5063c8241840eef87bad

if you give me the specific year i should be able to provide you with the exact pin for your ecu, provided the ecu is stock!
