Straitline79 Posted March 22, 2016 Share Posted March 22, 2016 All, Looking for some tips in working out the fault with the Morette headlights on my 2002 WRX Sportwagon. This is a recently purchased car for me which needed a little work. It was just about ready to go for it's MOT but then found both full beam lights dont work. bulbs and fuses are fine. All the other lights work. The lights (I believe) were fitted by the original owner when he spec'd the car so not an aftermarket fit. When i turn the lights own i can hear a clicking sound at the passenger side headlight. Is there another relay other than the ones in the main box in the engine bay? Looks like its nightmare to get to without taking off the whole light fitting? Any tips, advice or experiences? So close...but yet so far to finally getting to drive my new toy!! Quote Link to comment Share on other sites More sharing options...
HoodedLime Posted March 22, 2016 Share Posted March 22, 2016 They are a real PITA. I had to sort out Morettes on my gf's bug recently. It started draining the Battery and then lost high beam. I had to replace both relays that were fitted behind lights and check all the wires. Took me a few hours but got it sorted :) So have a look around the headlights, there should be at least one relay there. Quote Link to comment Share on other sites More sharing options...

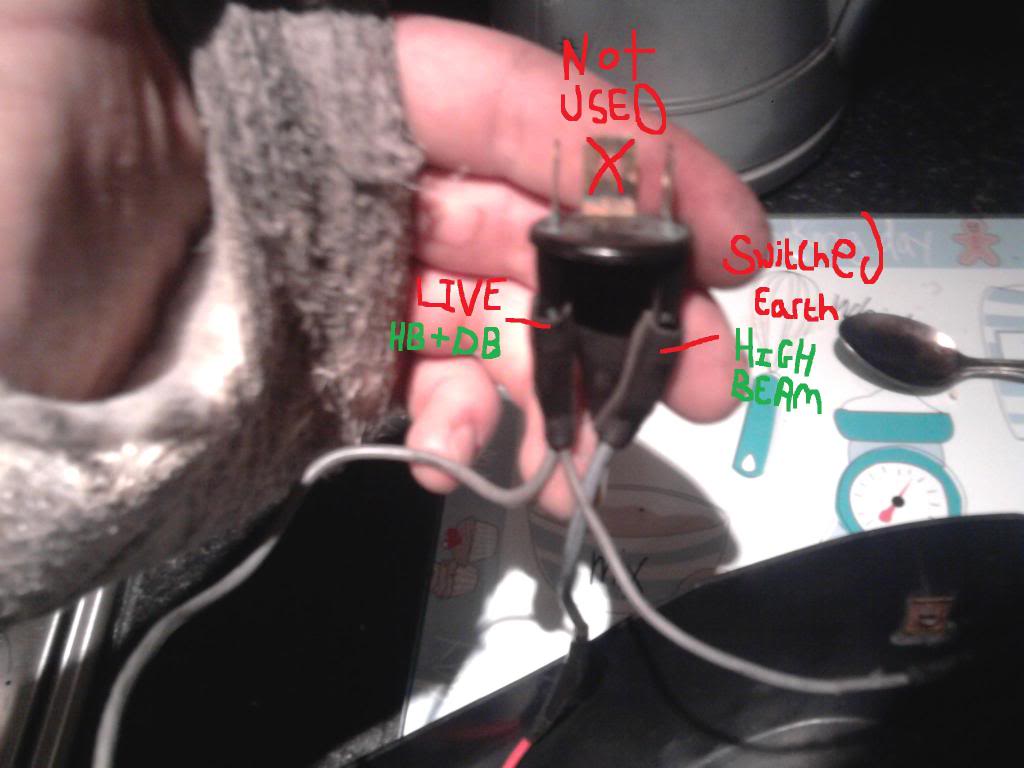

aucky Posted March 22, 2016 Share Posted March 22, 2016 dont bother with the relays way of wiring them up,here is how i did mine on my bug wagon,their littrally 10 min job each side car. Quote Link to comment Share on other sites More sharing options...
Straitline79 Posted March 22, 2016 Author Share Posted March 22, 2016 16 minutes ago, HoodedLime said: They are a real PITA. I had to sort out Morettes on my gf's bug recently. It started draining the battery and then lost high beam. I had to replace both relays that were fitted behind lights and check all the wires. Took me a few hours but got it sorted :) So have a look around the headlights, there should be at least one relay there. Hi HoodedLime, OK thanks for that. Its all pretty tight to get to it...i assume you have to take the lights off to get to the relays? If so, how do u get the small screw at the bottom of the light out? Can you get to it without taking the bumper off? Apologies if its a stupid question but i am new to Scooby's. Do you know what type of relay it is? 2 minutes ago, aucky said: dont bother with the relays way of wiring them up,here is how i did mine on my bug wagon,their littrally 10 min job each side car. Hi Aucky, The lights are already in and wired up by the original owner or by Subaru when the car was ordered. I will go down the relay route first before having to change wiring but thanks for the picture, its saved should i need it. Will be thursday before i get to it again so will update then. Cheers Quote Link to comment Share on other sites More sharing options...
aucky Posted March 22, 2016 Share Posted March 22, 2016 no prob,sounds like you still have a lead that connects each headlight unit that goes across the car acroos top radiator or somewere near their,check make sure its connected ok,bad connection will stop them working. Quote Link to comment Share on other sites More sharing options...
HoodedLime Posted March 22, 2016 Share Posted March 22, 2016 (edited) Definitely don't have to get the bumper off. I'm sure all you need to do is take grille off and there are 2 screws on inner side of each headlight. Could be one or 2 on top too, can't remember now but you should be able to spot them. Get the screws out and gently pull them out. Relays on my gf's morettes were full of water and just rotted inside. EDIT: What aucky said, there should be a wire going from one light to the other. Relay(s) will be on one of them. They were on passenger side on my gf's bug Edited March 22, 2016 by HoodedLime Quote Link to comment Share on other sites More sharing options...
Straitline79 Posted March 22, 2016 Author Share Posted March 22, 2016 9 minutes ago, aucky said: no prob,sounds like you still have a lead that connects each headlight unit that goes across the car acroos top radiator or somewere near their,check make sure its connected ok,bad connection will stop them working. Ok Aucky, i think i know the exact wire your talking about will check it out and see how it goes. Cheers. 8 minutes ago, HoodedLime said: Definitely don't have to get the bumper off. I'm sure all you need to do is take grille off and there are 2 screws on inner side of each headlight. Could be one or 2 on top too, can't remember now but you should be able to spot them. Get the screws out and gently pull them out. Relays on my gf's morettes were full of water and just rotted inside. EDIT: What aucky said, there should be a wire going from one light to the other. Relay(s) will be on one of them. They were on passenger side on my gf's bug HoodedLime, I will use a little TLC and try to convince it off. Yeah i can feel the relay clicking and it is at the passenger side at the back of the light. Thanks! Quote Link to comment Share on other sites More sharing options...
Straitline79 Posted March 27, 2016 Author Share Posted March 27, 2016 On 21 March 2016 at 9:32 PM, Straitline79 said: Ok Aucky, i think i know the exact wire your talking about will check it out and see how it goes. Cheers. HoodedLime, I will use a little TLC and try to convince it off. Yeah i can feel the relay clicking and it is at the passenger side at the back of the light. Thanks! Hi Aucky, So turns out the issue was with 1 wire going into the 4 pin relay screwed onto the back of the headlight...easy fix....or so i thought! One of the metal connectors in the plastic housing has disintegrated into nothing. It seems electrical stores only have the female curly type. I cannot find the type in the picture that is flat on both sides. Anyone know where i can get these? Quote Link to comment Share on other sites More sharing options...
aucky Posted March 27, 2016 Share Posted March 27, 2016 You sould be able to get them at Halfords mate.or maplin.ebay.may have to show them the picture or part at Halfords. Sent from my LG-D855 using Tapatalk Quote Link to comment Share on other sites More sharing options...
HoodedLime Posted March 27, 2016 Share Posted March 27, 2016 I was looking for them too but in the end just put new connectors on wires and used them without that plastic surround. I saw some on eBay but only from China Quote Link to comment Share on other sites More sharing options...
Straitline79 Posted March 27, 2016 Author Share Posted March 27, 2016 Yeah its annoying. I have called every auto electrical store in Aberdeen and no-one has them. May end up having to do the same but suspect doing that they will corrode quicker being exposed. Quote Link to comment Share on other sites More sharing options...
HoodedLime Posted March 27, 2016 Share Posted March 27, 2016 I have wrapped them in plastic bags and taped it up. Checked it a few times since and seems no moisture is getting in. Well, it won't last forever but should be ok for a year or two :) Quote Link to comment Share on other sites More sharing options...
Straitline79 Posted March 28, 2016 Author Share Posted March 28, 2016 OK, thinking i will try drilling out the plastic sheet a little bit to see if i can get the normal female connectors to fit...failing that will just do something similar to you. Cheers Quote Link to comment Share on other sites More sharing options...

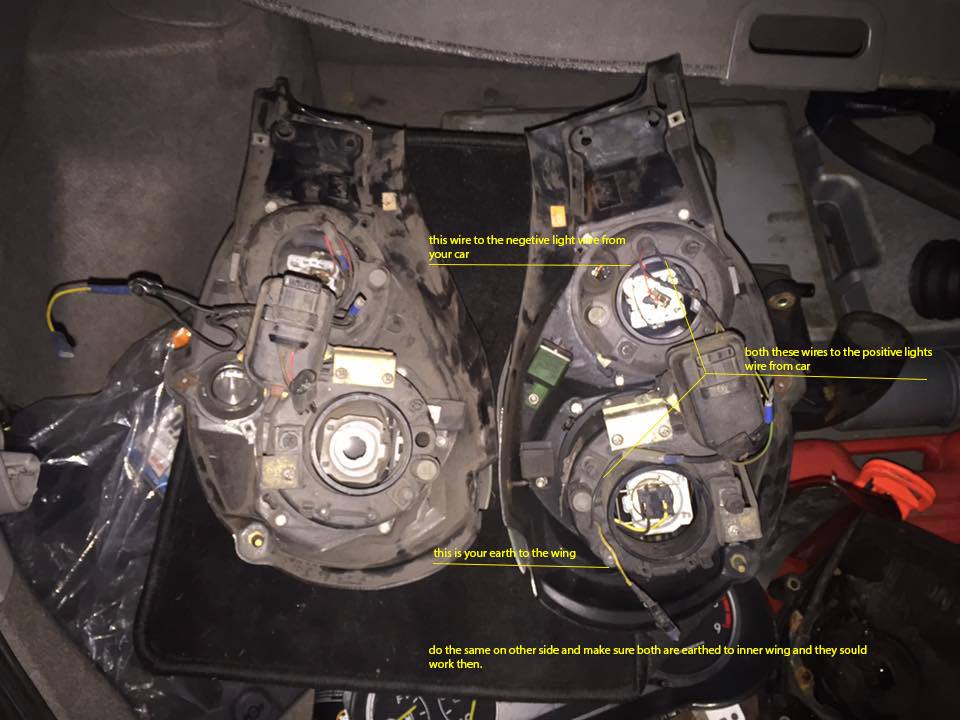

aucky Posted March 28, 2016 Share Posted March 28, 2016 you could just put a new connector on,1 of these 3 pin are great for them http://www.ebay.co.uk/itm/Electrical-Waterproof-Connector-1-2-3-4-5-6-Pin-Way-Superseal-Car-Boat-Kit-Clip-/222066382159?var=&hash=item33b430154f:m:m8fkUnY7eWsrc0SFlCqeIWw if you want to ditch the stupid morrette wireing and do it easy with less faults here is how i wired mine up,did a set yesterday for a guy as well,half hour wired up and ready to go. Quote Link to comment Share on other sites More sharing options...
Straitline79 Posted March 28, 2016 Author Share Posted March 28, 2016 Hi Aucky, Thanks for the info but hopefully I won't need to mess with it again. I drilled out the existing the plastic sheath that held the corroded connector so it now firmly holds a standard connector. Lights tested and working. Will keep this post handy just in case...never know what might happen! Cheers All! 1 Quote Link to comment Share on other sites More sharing options...
