Leehaydon96 Posted July 10, 2018 Share Posted July 10, 2018 Hi guys, I have a bit of a problem installing the Kenwood Navi Stereo fitted to the later Subaru models into my 2008 Impreza. I have followed the pinouts and made my own harness and I am sure everything is fine after following ae64. However when I sit it into my car, it just displays Security and does nothing more. I have tried ringing around local dealers and audio specialists but no one is too interested in helping me, so I have come here. Thanks for your time Quote Link to comment Share on other sites More sharing options...
smccul Posted July 10, 2018 Share Posted July 10, 2018 Hi sorry not sure of the unit but will it not be looking for an unlock pin!. Quote Link to comment Share on other sites More sharing options...
Leehaydon96 Posted July 11, 2018 Author Share Posted July 11, 2018 So one of the pictures I’ve got from google is a photo of the headunit I have. And the other photo is the Security screen its stuck in. Theres no way of typing any code from what I can see Quote Link to comment Share on other sites More sharing options...
robbo770 Posted January 10, 2022 Share Posted January 10, 2022 On 7/10/2018 at 6:15 PM, Leehaydon96 said: Hi guys, I have a bit of a problem installing the Kenwood Navi stereo fitted to the later Subaru models into my 2008 Impreza. I have followed the pinouts and made my own harness and I am sure everything is fine after following ae64. However when I sit it into my car, it just displays Security and does nothing more. I have tried ringing around local dealers and audio specialists but no one is too interested in helping me, so I have come here. Thanks for your time can you supply the pin out for the Stereo as I can’t find the 24 pin colour and what the wires do fo my forester anywhere on the net Quote Link to comment Share on other sites More sharing options...

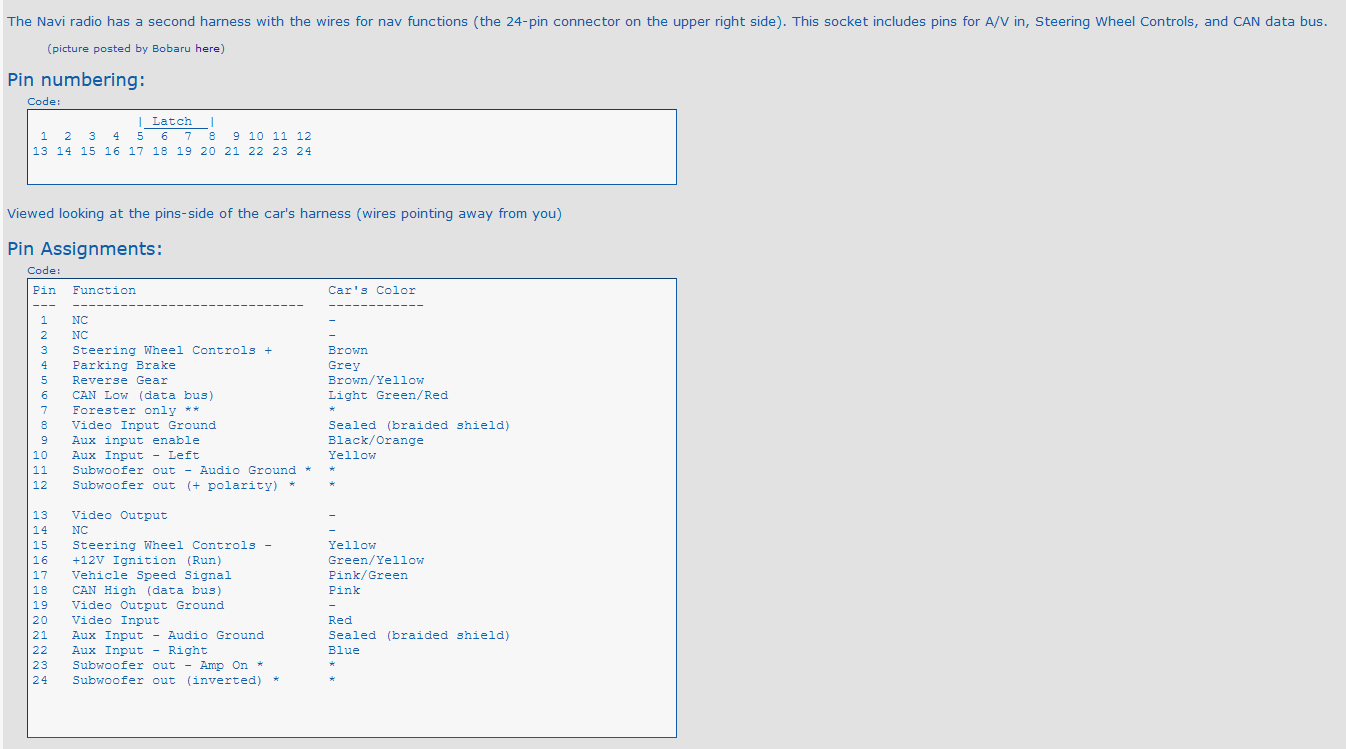

Jay762 Posted January 11, 2022 Share Posted January 11, 2022 1 Quote Link to comment Share on other sites More sharing options...
Jay762 Posted January 11, 2022 Share Posted January 11, 2022 Source https://forums.nasioc.com/forums/showthread.php?p=10308972&postcount=11 Quote Link to comment Share on other sites More sharing options...
Bahnstormer Posted January 11, 2022 Share Posted January 11, 2022 Is your car an import by any chance? Quote Link to comment Share on other sites More sharing options...
robbo770 Posted January 13, 2022 Share Posted January 13, 2022 On 1/11/2022 at 8:49 AM, Jay762 said: This is great but need more info on forester specific pin out and where for example the wire on pin 7 comes from and it’s colour, UK spec car Quote Link to comment Share on other sites More sharing options...
robbo770 Posted January 13, 2022 Share Posted January 13, 2022 Pin outimages for24 pin don’t open anymore on the thread sorry Quote Link to comment Share on other sites More sharing options...
robbo770 Posted January 13, 2022 Share Posted January 13, 2022 Ifsomeone can pm that is able to get me wiring diagram to my carreg and the kenwood nav additional manual this would be great. Quote Link to comment Share on other sites More sharing options...
Jay762 Posted January 13, 2022 Share Posted January 13, 2022 5 hours ago, robbo770 said: This is great but need more info on forester specific pin out and where for example the wire on pin 7 comes from and it’s colour, UK spec car Try this one https://portal-diagnostov.com/fr/2020/05/01/radio-subaru-forester-xt-2009-system-wiring-diagrams/ Quote Link to comment Share on other sites More sharing options...
Jay762 Posted January 13, 2022 Share Posted January 13, 2022 If you have some photos of the unit and the existing wiring that might be useful Quote Link to comment Share on other sites More sharing options...

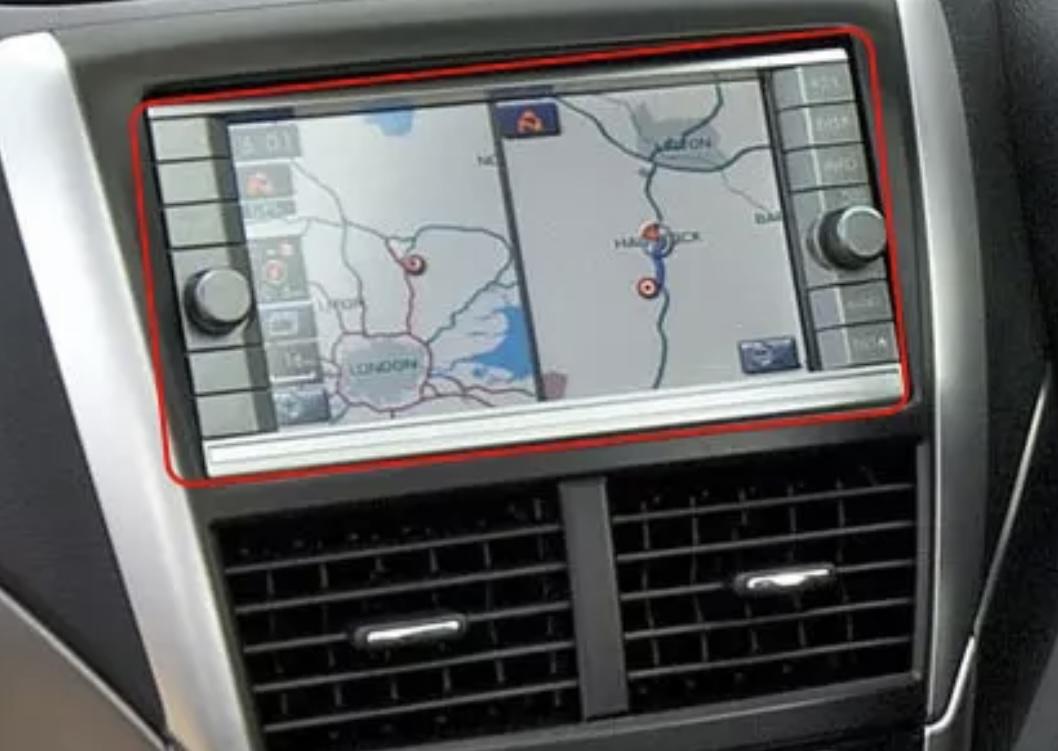

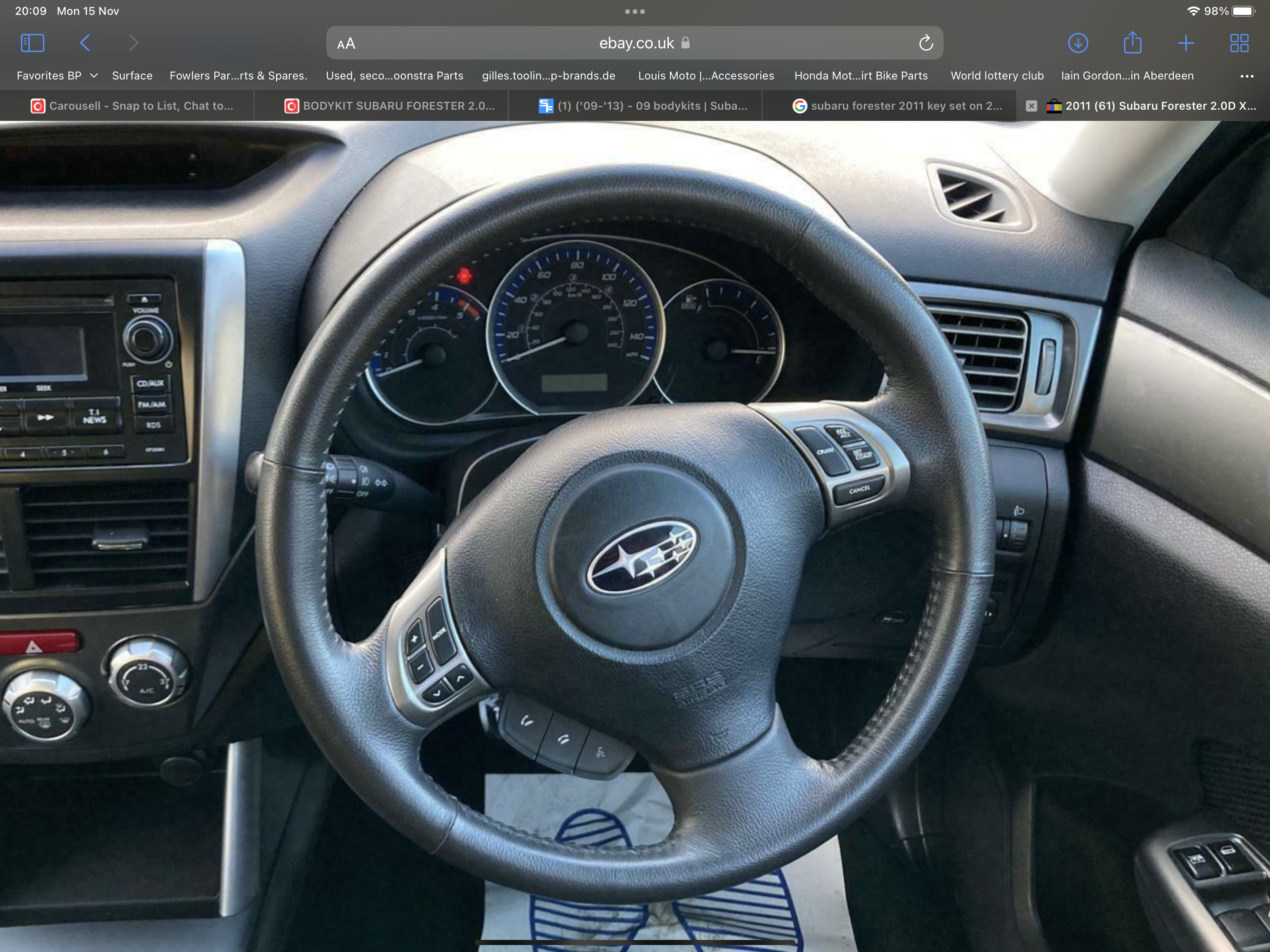

robbo770 Posted January 13, 2022 Share Posted January 13, 2022 9 hours ago, Jay762 said: Try this one https://portal-diagnostov.com/fr/2020/05/01/radio-subaru-forester-xt-2009-system-wiring-diagrams/ Hi Jay762, can you do me a favour and attach the second and 3rd wiring diagrams from that link as they are blurred out on the site linked. Stereo is this type, but I have this steering wheel with the phone controls so it has specific addition wires used in a 2009 forester SH diesel there is a blue/white wire from b68 connector going somewhere but I don’t know where, I think it is to the 24 pin Stereo connector Quote Link to comment Share on other sites More sharing options...
Jay762 Posted January 13, 2022 Share Posted January 13, 2022 2 hours ago, robbo770 said: Hi Jay762, can you do me a favour and attach the second and 3rd wiring diagrams from that link as they are blurred out on the site linked. Those blurred out diagrams become available as a purchase I only see x2 diagrams top one clear bottom one blurred I am not sure the head unit will work with those switches - I had that unit in my RX and we could not get the phone to connect to it and work other than playing audio through the RCA jack. The steering wheel controls worked for channels volume etc though. Ill have a look in the manual this weekend see if there is any further info on phone specific modules, I know there is an Ipod one and a multi cd player one Quote Link to comment Share on other sites More sharing options...
robbo770 Posted February 7, 2022 Share Posted February 7, 2022 Hi , getting back to wiring , does anyone have a 24 pin plug with all the correct wiring colours available as I think an extension and solder in to repair my loom maybe a better solution to fix the car, hope someone can help Quote Link to comment Share on other sites More sharing options...
