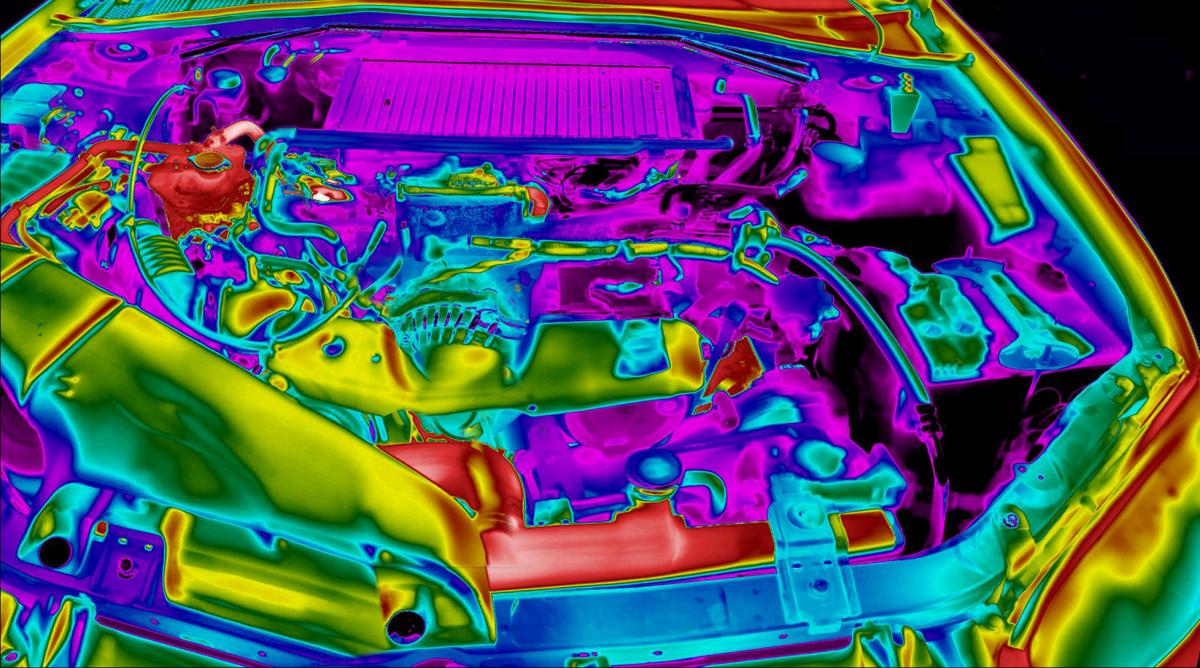

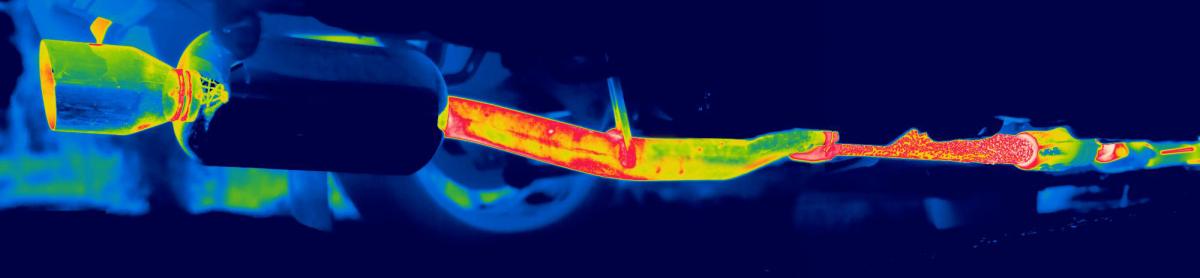

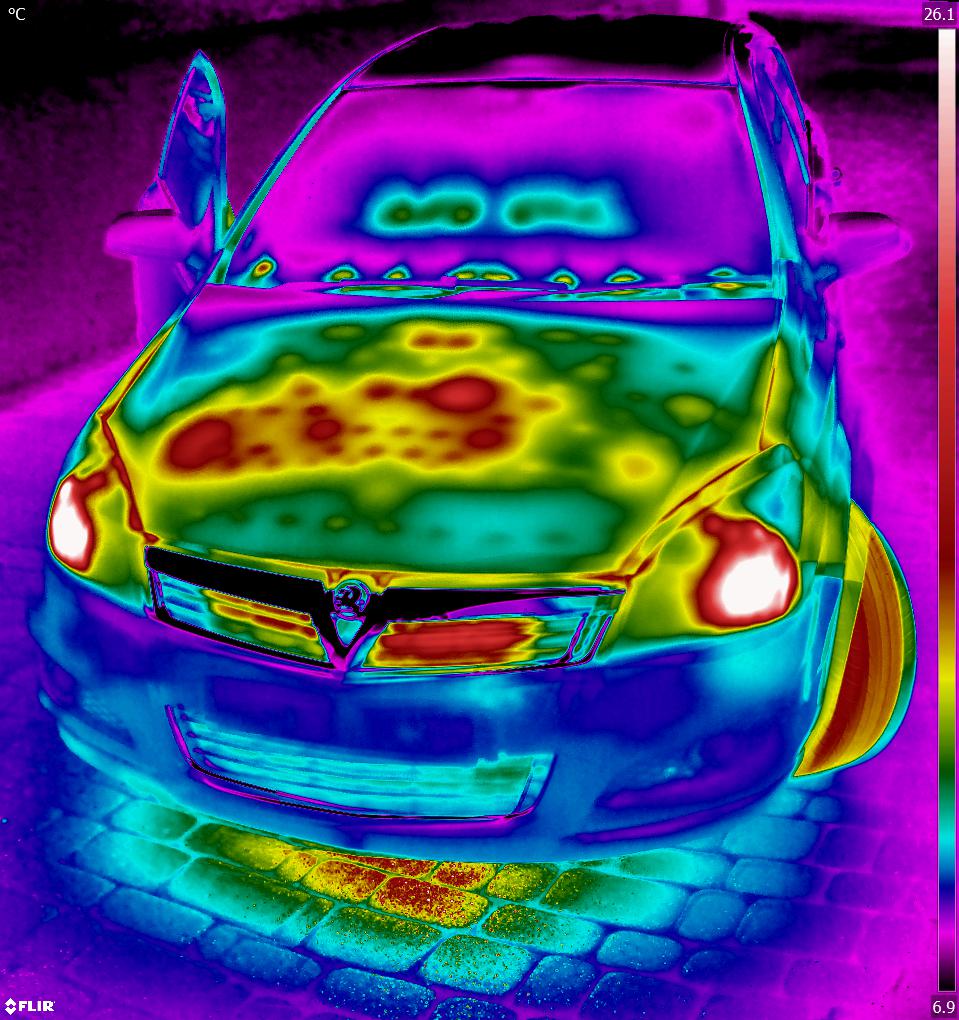

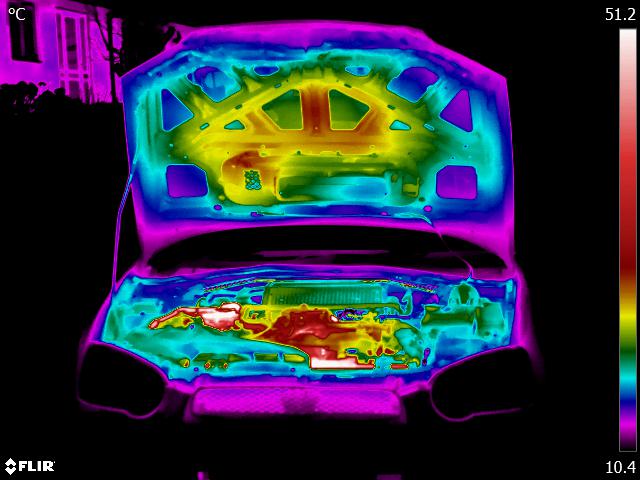

ChrisD Posted February 25, 2015 Share Posted February 25, 2015 It turns out the photo stitching software really struggles with this application but here are some more images taken with my thermal imaging camera you may enjoy. If you have any question about any of the images, camera, car etc then please feel free to ask :) First Image: Engine Bay, you get the jist but the stitching got a bit confused as it is actually many many images Second Image: Exhaust, note the center exhaust pipe may look hotter due to the difference surfaces, i.e. becuase the center pipe is more rusty it has a higher emissivity meaning it has a better ability of emitting its temperature as infrared energy meaning it looks hotter in comparison to an object of the same temperature with a low emissivity (such as shiny and polished metals) Also not the reflections apparent in some sections. Third image, outside view, the sun has been on my car all day, you can see the shadow on the car and also note some reflections. Fourth image, as third. I think they look beautiful ! 3 Quote Link to comment Share on other sites More sharing options...
savage bulldogs Posted February 25, 2015 Share Posted February 25, 2015 Nice pics bud I've always wondered if the coolant pipes that run over the air box warmed the intake air . by the look of the first pic they do ,As they're seems to be a area of red near the maf Quote Link to comment Share on other sites More sharing options...
ChrisD Posted February 25, 2015 Author Share Posted February 25, 2015 That may be able down to Sun on that side, but yea same with the duct sat on the radiator that's hot :) Quote Link to comment Share on other sites More sharing options...
quit Posted February 25, 2015 Share Posted February 25, 2015 umm were looking at getting a thermal imaging camera at work ! could be interesting Quote Link to comment Share on other sites More sharing options...
ChrisD Posted February 25, 2015 Author Share Posted February 25, 2015 umm were looking at getting a thermal imaging camera at work ! could be interesting Matt, give them my contact details Chris Deakin chris@proviso-systems.co.uk www.proviso-systems.co.uk we sell thermal imaging cameras, as well as calibrate them and offer training and anything else you could want. we also offer the best support you will find out of any supplier! if you need anything else or more information on the cameras etc let me know ! 3 Quote Link to comment Share on other sites More sharing options...
quit Posted February 25, 2015 Share Posted February 25, 2015 yeah i will email you tomorrow mate Quote Link to comment Share on other sites More sharing options...

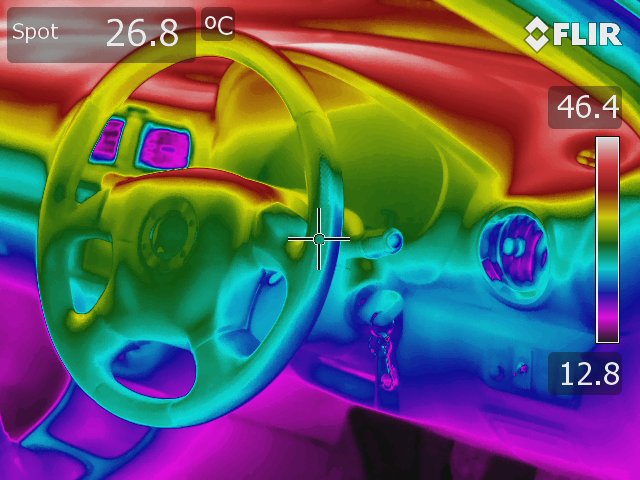

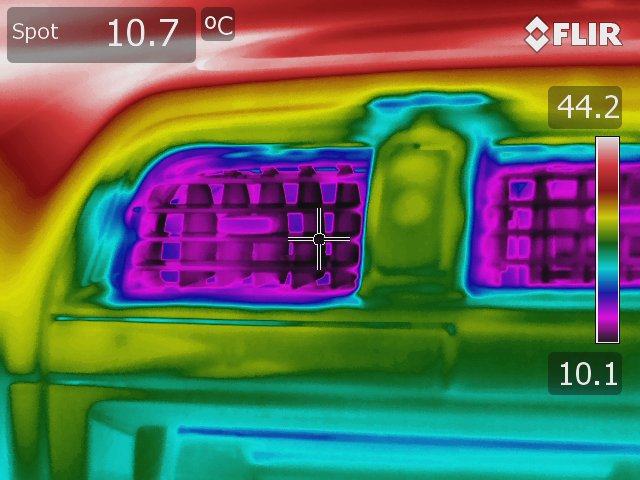

ChrisD Posted February 25, 2015 Author Share Posted February 25, 2015 Also , Air vents pumping out some cold for your guys info ! 2 Quote Link to comment Share on other sites More sharing options...
ChrisD Posted February 25, 2015 Author Share Posted February 25, 2015 yeah i will email you tomorrow mate Looking forward to it Matt, Cheers pal! Quote Link to comment Share on other sites More sharing options...
BoozyDave Posted February 25, 2015 Share Posted February 25, 2015 pics are great, I've got a thermal imaging camera for work (sparky) but never thought of using it on the car 2 Quote Link to comment Share on other sites More sharing options...
Nevell Posted February 25, 2015 Share Posted February 25, 2015 This is cool can you try get one , top view engine bay turbo area :-! Also noticed right side of engine quite cool :-) 1 Quote Link to comment Share on other sites More sharing options...
ChrisD Posted February 25, 2015 Author Share Posted February 25, 2015 May be due to it being more in the shade, and oh dave, when you want a new model let me know. We have some good offers on for the flir e8 at the min! Great camera Quote Link to comment Share on other sites More sharing options...

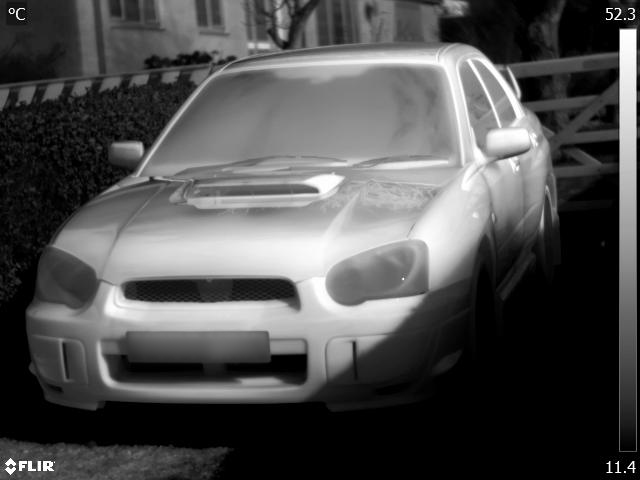

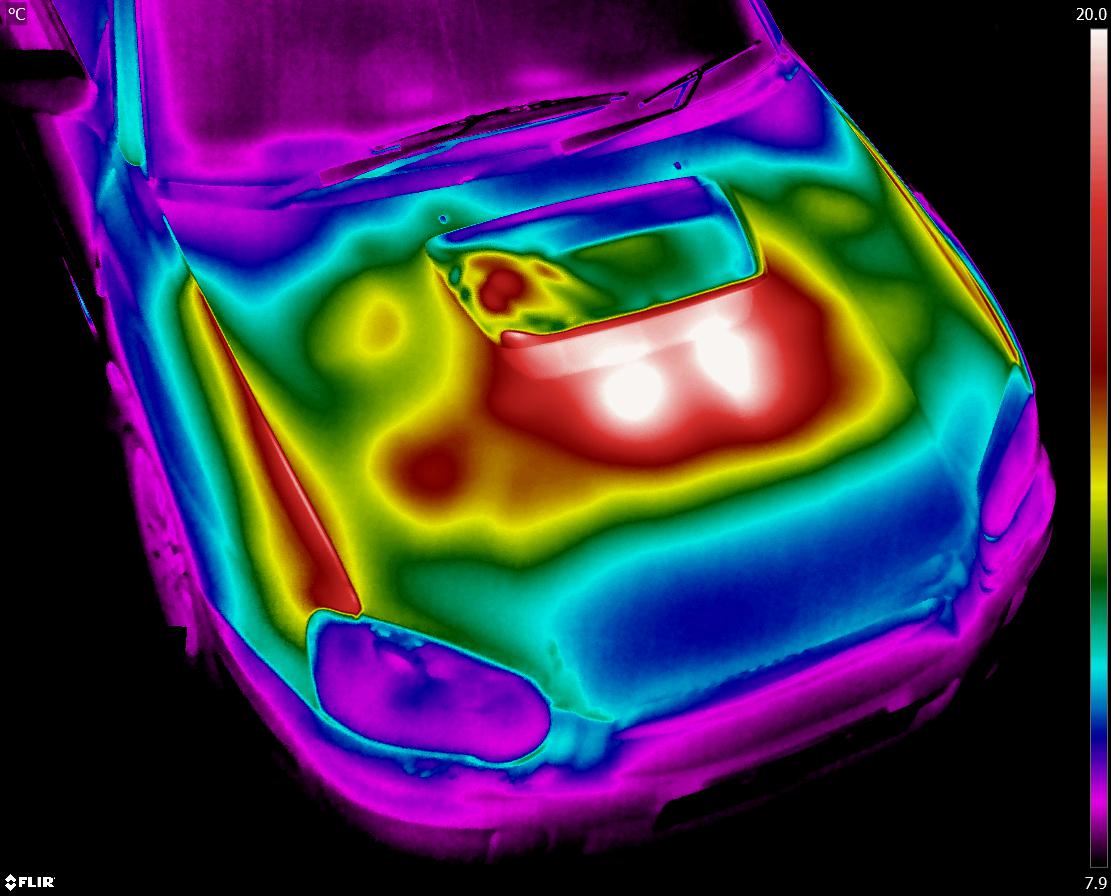

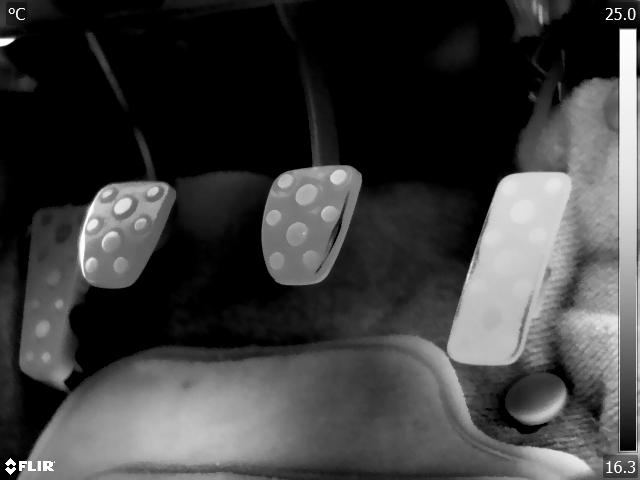

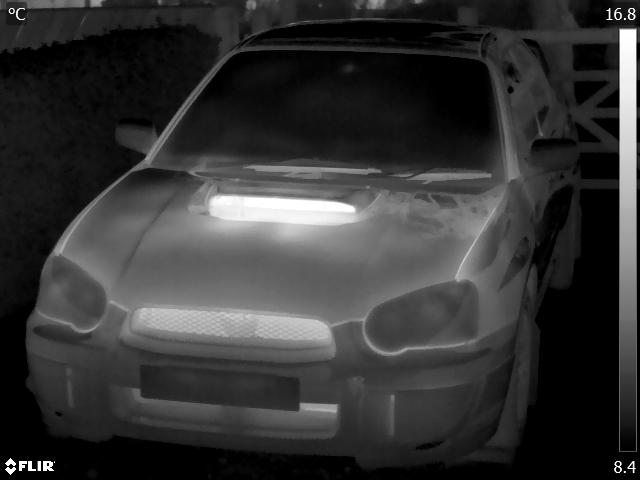

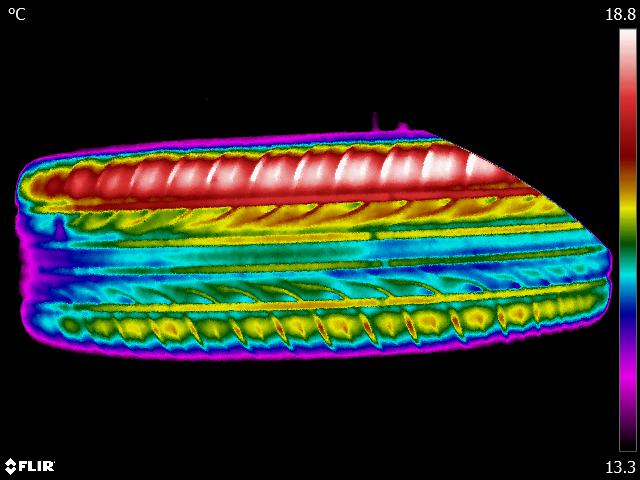

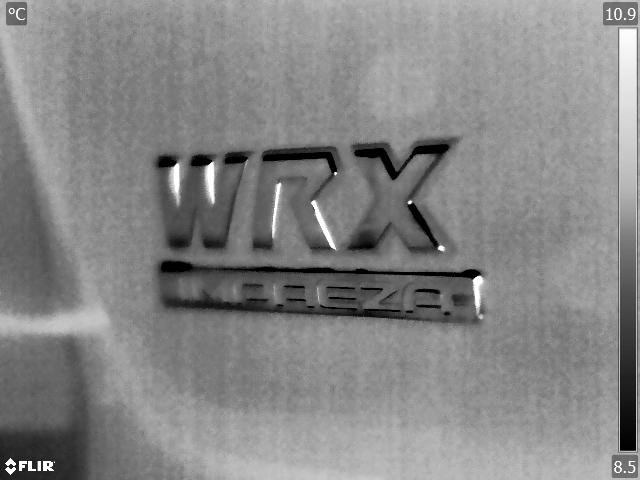

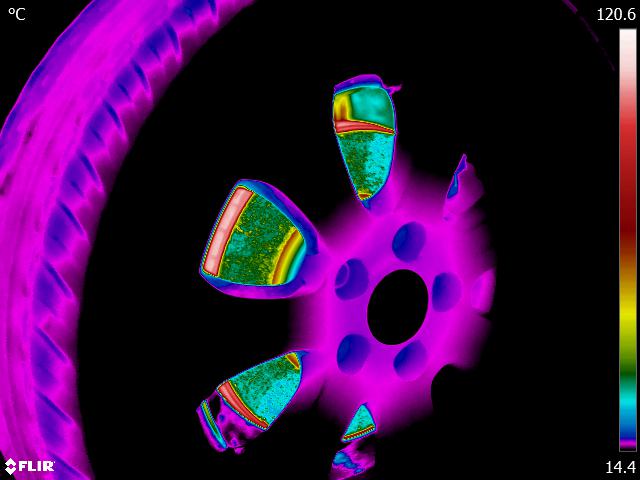

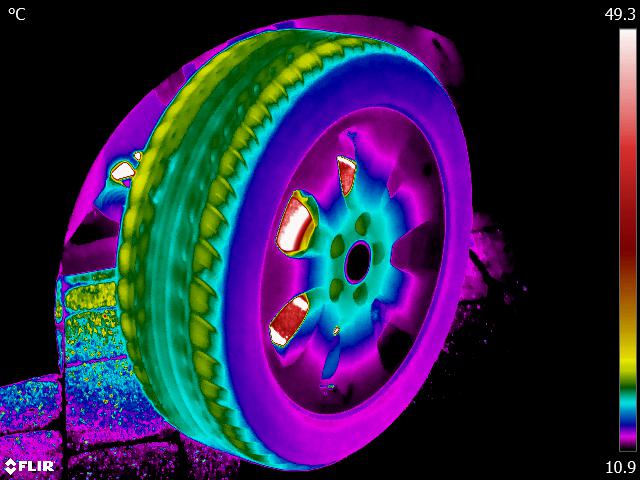

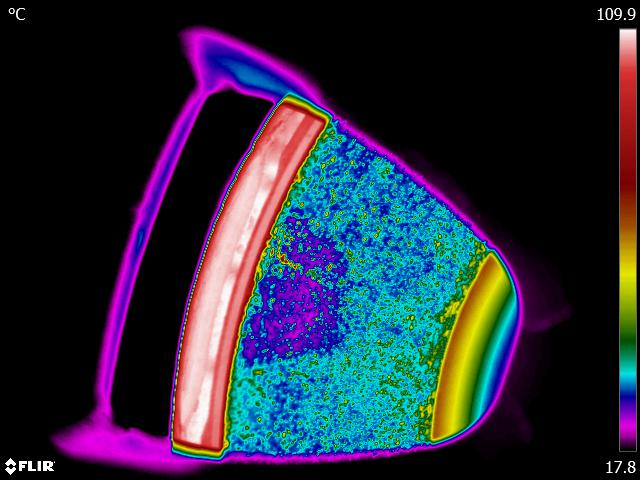

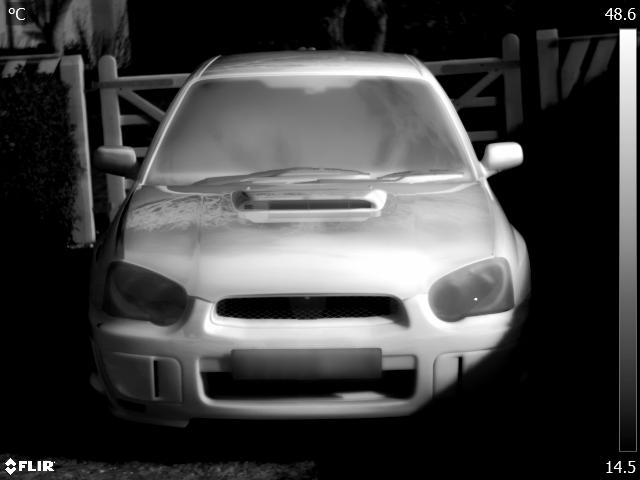

ChrisD Posted February 26, 2015 Author Share Posted February 26, 2015 More Images. My Astra with bonnet down. WRX with bonnet down WRX With bonney just lifted my Astra's disks after a quick thrashing My Astra's Tyres after the quick thrashing WRX Badge ... because it makes a good pic so does the pedals 2 Quote Link to comment Share on other sites More sharing options...
Scoobyghost Posted February 26, 2015 Share Posted February 26, 2015 Looks awesome. Looks like you've had a lot of fun with that camera too! Quote Link to comment Share on other sites More sharing options...
ChrisD Posted February 26, 2015 Author Share Posted February 26, 2015 Better Picture of WRX with bonnet down Quote Link to comment Share on other sites More sharing options...
ChrisD Posted February 26, 2015 Author Share Posted February 26, 2015 If you have the tools why not use them! and the main reason is I have been asked to do more images for a large online car news "thing" so keep your eyes peeled if you see my images else where ! Quote Link to comment Share on other sites More sharing options...
quit Posted April 7, 2015 Share Posted April 7, 2015 I've just ordered a thermal camera ! Quote Link to comment Share on other sites More sharing options...
ChrisD Posted April 7, 2015 Author Share Posted April 7, 2015 Why didn't you order it from me!! I could have gotten you a better deal :) Quote Link to comment Share on other sites More sharing options...
Tidgy Posted April 7, 2015 Share Posted April 7, 2015 cool pics. Just out of interest typicly how much are the cameras? Quote Link to comment Share on other sites More sharing options...
Gambit Posted April 7, 2015 Share Posted April 7, 2015 I think he said the one he has was about 17k from memory or you can pay upto that [emoji15] Quote Link to comment Share on other sites More sharing options...
Tidgy Posted April 7, 2015 Share Posted April 7, 2015 ouch!!! lol Quote Link to comment Share on other sites More sharing options...
ChrisD Posted April 7, 2015 Author Share Posted April 7, 2015 That's for the camera I used, they start around 800 pounds and go up, the more you pay the better the quality :) Quote Link to comment Share on other sites More sharing options...
Tidgy Posted April 7, 2015 Share Posted April 7, 2015 hmm, bit out of my 'toy gadget' range :( Quote Link to comment Share on other sites More sharing options...
quit Posted April 7, 2015 Share Posted April 7, 2015 Why didn't you order it from me!! I could have gotten you a better deal :) I'm not the boss , ended up spending 12k bosses money on a marketing gimmick lol Quote Link to comment Share on other sites More sharing options...
ChrisD Posted April 7, 2015 Author Share Posted April 7, 2015 They have a model under 300 that clips onto an iphone but you can't measure temperature and the quality is terrible Quote Link to comment Share on other sites More sharing options...
ChrisD Posted April 7, 2015 Author Share Posted April 7, 2015 Well When you are easy for the next one, you can put my name forward :) we also offer very competitive calibration checks for the cameras Quote Link to comment Share on other sites More sharing options...
